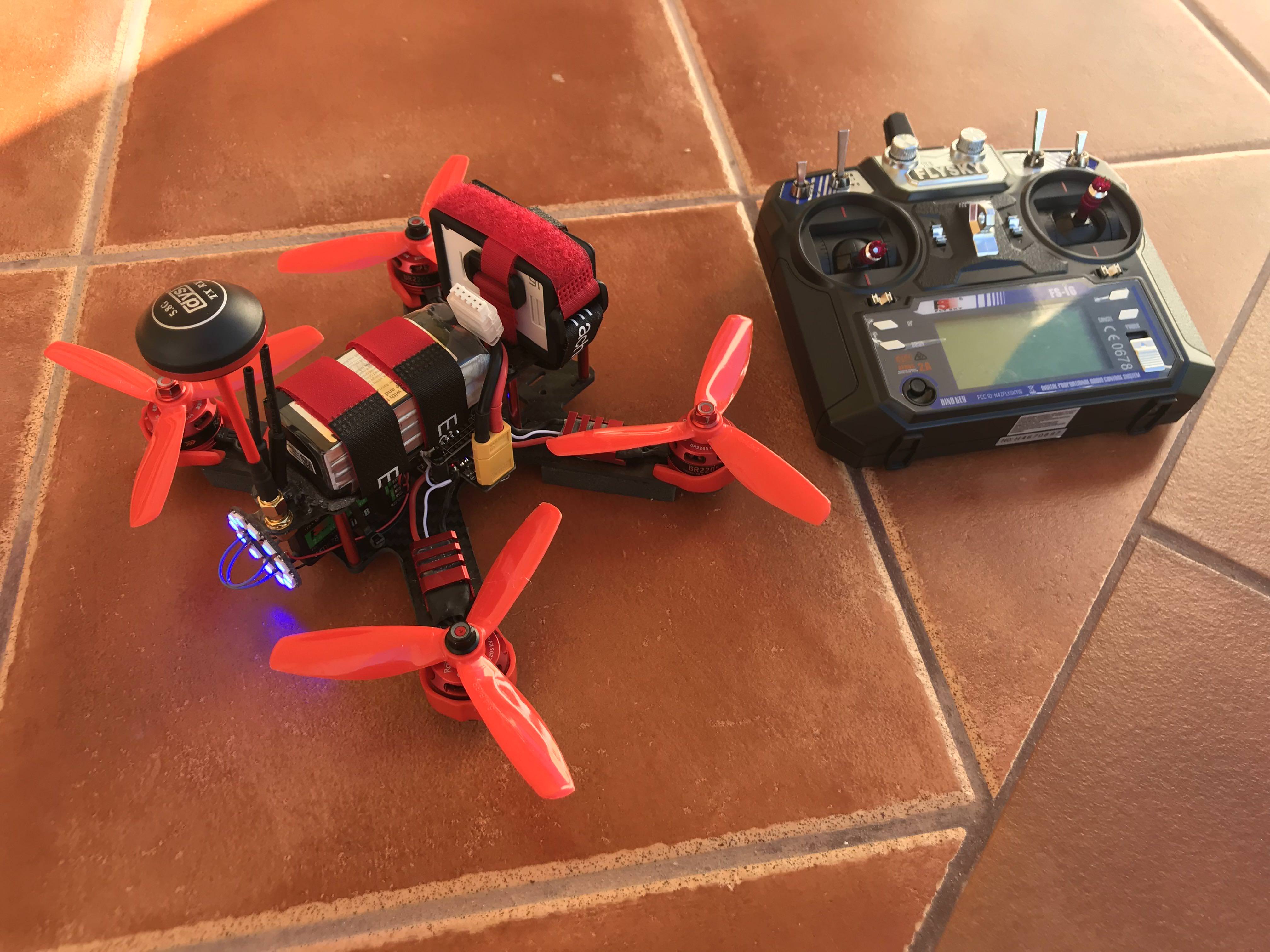

Racing Drone | Complete DIY FPV Build Guide
Components
Frame
- Lisam LS-210 210mm Carbon Fiber 13,52€
PDB
- Realacc / Matek HUBOSD ECO X Type w/STOSD8 14,4€
VTX
- Eachine TX526 5.8G 40CH 25MW/200MW/600MW Switchable AV 12,08€
- 5cm RP-SMA Male to RP-SMA Female Right Angle Cable For FPV RC Drone 1,68€
Propellers
- 20x Kingkong / LDARC 5x4.5x3 5045 5 Inch 3-Blade (Red) 5,96€
Flight controller
- F3 Acro 6 DOF/Deluxe 10 DOF 17,36€
Motors
- 4x Racerstar Racing Edition 2205 BR2205 2300KV 2-4S Brushless 24,5€
ESCs
- 4x Racerstar RS30A V2 30A Blheli_S ESC 2-4S (Support Oneshot42 Multishot 16.5 Dshot600) 42,2€
Transmitter and receiver
- FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter with FS-iA6B Receiver (Left hand throttle) 34,76€
- 2x 2.4G RP-SMA Female To U.FL IPX 1.13 Pigtail Cable 20cm 2,82€
- 2x 2.4GHz 5dBi Wireless Wifi Antenna Booster WLAN RP-SMA 4,26€
- Flight Simulator Wiring Cable Plug For Flysky FS-i6 1,43€
- Eachine Carrying Neck Strap 20mm for RC Transmitter 1,38€
Battery balance charger
- SkyRC IMAX B6 Digital RC DC Lipo Li-polymer 22,92€
- Power Supply Adapter for SKYRC IMAX B6 15V 4A 60W 11,79€
- XT60 Plug Parallel Charging Board 10,29€
- Li-Po Battery Balance Charging Extension Wire Cable 20cm 2S/3S/4S/6S 1,18€
Li-Po battery
- Tattu 1300 mAh 14.8V 75C 4S 72 x 34 x 28 mm 156.4g
- 2x ZOP Power 1800 mAh 14.8V 65C 4S 68 x 34 x 39 mm 177g
Battery straps
- 10x 26cm Eachine Lipo Battery Tie Down Strap 2,22€
Buzzer
- 5x 5V Electric Magnetic Active Buzzer Continuous Beep 1,23€
FPV camera
- RunCam Swift 2 1/3 CCD 600TVL PAL IR Blocked FOV 130/150/165 Degree 2.3mm with OSD 32,27€
OSD
- Realacc MinimOSD 5,19€
FPV googles
- Eachine EV100 720**540 5.8G 72CH with Dual Antennas Fan 7.4V 1000mAh Battery 74,60€
- 2x Replacement Faceplate Soft Foam Pads 4,21€
Extra Components
Avoid short circuits
- 328x Heat Shrink Tubes 2,37€
- 1m Transparent Lipo Battery Casing PVC Heat shrinkable 86mm 1,7€
Protecting your ESCs with style
- 4x Aluminum Alloy ESC Protective Case 27178.5mm (Red) 3,89€
Better reception of signal from FPV
- 2x DYS FPV 5.8G Mushroom Antenna 4dBi RHCP TX RX (RP-SMA Male) 7,24€
- Aomway 11dbi 7 Turn 5.8GHz Helical Antenna RHCP (RP-SMA Male) 10,77€
- Realacc 45 Degree Antenna Adapter Connector RP-SMA Female 1,45€
Lipo tester
- 2x 2 in 1 Lipo Battery Low Voltage Tester 1S-8S Buzzer Alarm 2,42€
Board spacers standoffs
- 10x Suleve™ M3AR1 M3 Aluminum Alloy Standoff Studs 35mm (Red) 2,44€
Battery protection
- Realacc Carbon Fiber Battery Protection Board with Tie Down Strap 1,98€
- Realacc LiPo Battery Storage Bag For Infinity/Giant/ZOPPower 2,83€
Motor protection
- 4x Realacc GX210 Motor Base (Red) 1,39€
Screw easily motor nuts for 4MM 5.5MM 8MM 10MM
- DYS RTM10 Motor Bullet Cap Aluminum Quick Release Wrench Tool 2,72€
Extra screws
- 240x Suleve™ M3CH3 M3 Carbon Steel Allen bolt 4-25mm Button Head Hex Socket Cap Screw Bolt Metric 6,11€
- 120x Suleve™ M3CH2 M3 Carbon Steel Allen Bolt 4-20mm Button Head Hex Socket Cap Screw Bolt Metric 3,49€
- 300x Suleve™ M3NH1 M3 Nylon Screw Black Hex Screw Nut Nylon PCB Standoff Assortment Kit 4,96€
LEDs
- 4x Liantian LED Strip with 4 WS2812B RG85050 5,6€
- Adafruit NeoPixel Ring 12 x 5050 RGB LED with Integrated Drivers 7,5€
Spare parts
- 4x Racerstar M5 Motor Screw Nut CW/CCW Screw Thread For BR2205 Brushless Motors (Red and Black) 2,19€
- 4x Realacc M3**7+4.5 Flight Controller Anti-Vibration Fixed Screws 2,35€
- 10x XT60 Male Female Bullet Connectors Plugs For RC Battery 5,02€
- 50x Realacc Landing Skid Gear Frame Anti-vibration M3 Sponge 3,25€
Tools
- DANIU Electrical Cutting Plier 2,41€
- 7x 1.5/2/2.5/3/4/5.5mm Hexagonal Screwdriver Tool Set 8,16€
- Realacc Motor Grip Pliers 8,04€
Instructions
We are working on this post, sorry for the inconvenience
